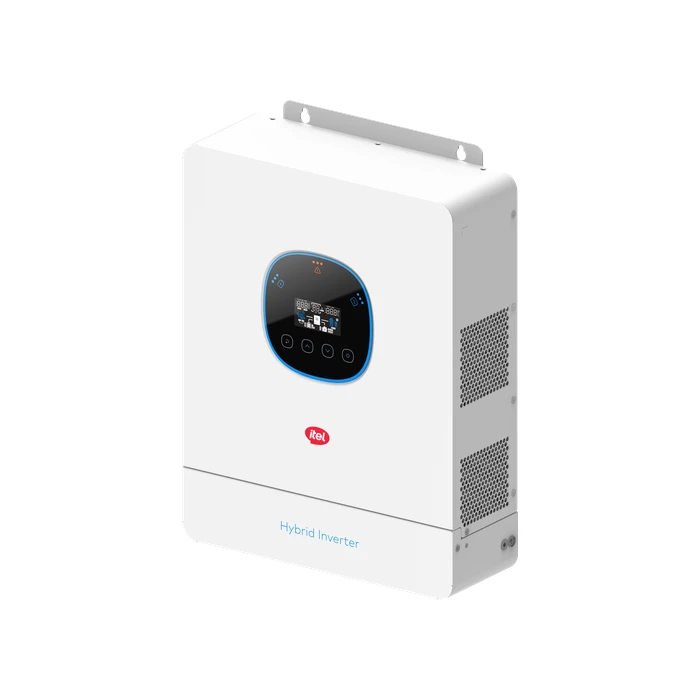

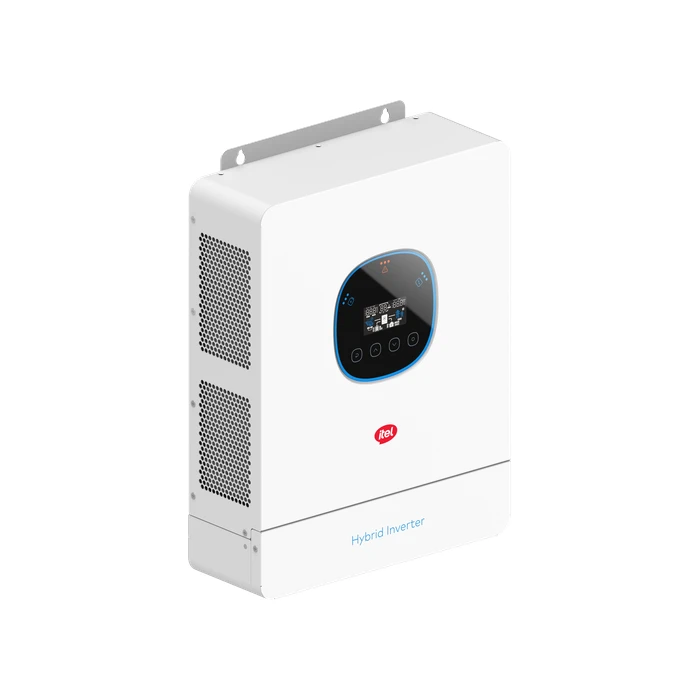

itel Hybrid Inverter IP54 4–6kW Pro Series
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $40
-
DHL Courier delivery
DHL courier will deliver to the specified address
1-2 Days
From $40
The itel Hybrid Inverter IP54 Pro Series (4kW & 6kW) delivers powerful solar performance with dual output support, 99.9% MPPT efficiency, and IP54 protection, ensuring reliable and efficient energy for homes and businesses.
Price range: ₨129,900 through ₨155,000
Description
The itel IP54 4–6kW Pro Hybrid Inverter Series is designed for high-performance solar energy systems, offering reliable backup and intelligent power management for modern homes and small businesses.
Available in two powerful variants (4kW & 6kW), this inverter series supports dual output (main load + smart load), allowing better energy distribution and priority control for essential appliances.
With advanced MPPT technology (>99.9% efficiency) and up to 97% conversion efficiency, it ensures maximum solar energy utilization. The system supports high PV input capacity (up to 8000W), making it ideal for larger solar setups.
The inverter is equipped with pure sine wave output, ensuring safe operation for sensitive electronics, while its strong surge capability allows smooth startup of heavy appliances like air conditioners, pumps, and refrigerators.
Designed with IP54 protection, it resists dust and water splashes, making it suitable for both indoor and semi-outdoor environments. With support for lithium-ion and lead-acid batteries, flexible installation, and smart connectivity options (WiFi, RS485, RS232), it delivers complete control and monitoring.
Backed by a 3-year replacement warranty, this inverter offers durability, safety, and peace of mind.
Key Features
- Dual Output System – Main load + smart load management
- Up to 99.9% MPPT Efficiency – Maximum solar harvesting
- Up to 97% Conversion Efficiency
- IP54 Protection – Dust & splash resistant
- High PV Input (Up to 8000W) – Ideal for large systems
- Pure Sine Wave Output – Safe for all appliances
- Strong Surge Power – Handles heavy load startup
- Multi-Battery Support – Lithium, Lead-acid, Custom
- Fast Charging Support (Up to 120A)
- Smart Connectivity – WiFi, RS485, RS232
- Low Noise Intelligent Cooling
- 3-Year Replacement Warranty
Key Specifications
Model Variants
| Feature | 4kW Model (IPV-4K24U Pro) | 6kW Model (IPV-6K48U Pro) |
|---|---|---|
| Rated Power | 4000W / 4000VA | 6000W / 6000VA |
| Battery Voltage | 24V | 48V |
| Max PV Input Power | 6000W | 8000W |
| Max PV Voltage | 500V | 500V |
| MPPT Range | 85–450V | 85–450V |
| PV Input Current | 15A | 27A |
| Surge Power | 8000W (5s) | 12000W (5s) |
| Max AC Input Current | 28A | 50A |
| Weight | 9.2 kg | 13 kg |
Specification
Overview
| Output Voltage | 220, 230, 240 VAC |
|---|---|
| Waveform | Pure Sine Wave |
| THD | <3% |
| Transfer Time | 10 ms (UPS), 20 ms (Appliances) |
| MPPT Efficiency | >99.9% |
| Conversion Efficiency | Up to 97% |
| Battery Types | Lithium-ion / Lead-acid / Custom |
| Voltage Range | 24V Model: 20–30V, 48V Model: 40–60V |
| Max Charging Current | Up to 120A |
| Max Discharge Current | 4kW: ~160A, 6kW: ~130A |
| Nominal Voltage | 230V |
| Input Range | 90–280V |
| Max Voltage | 380V |
| Frequency | 50/60 Hz |
