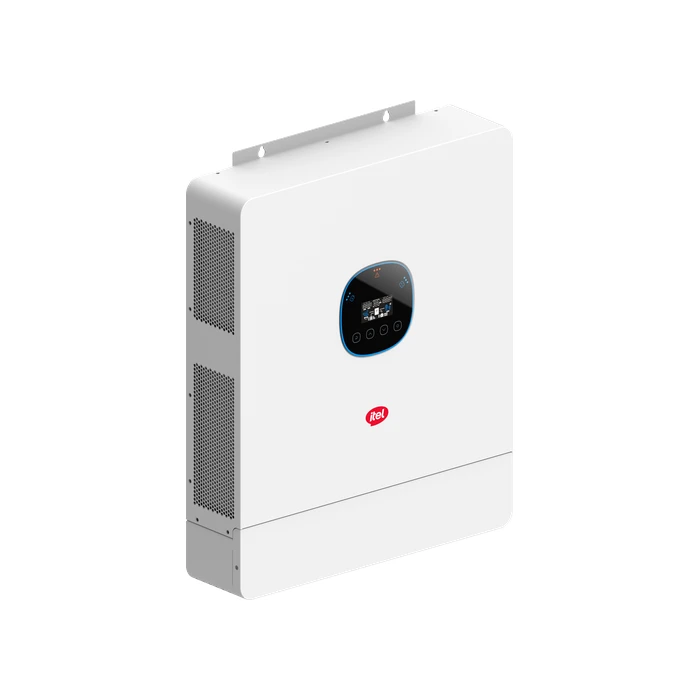

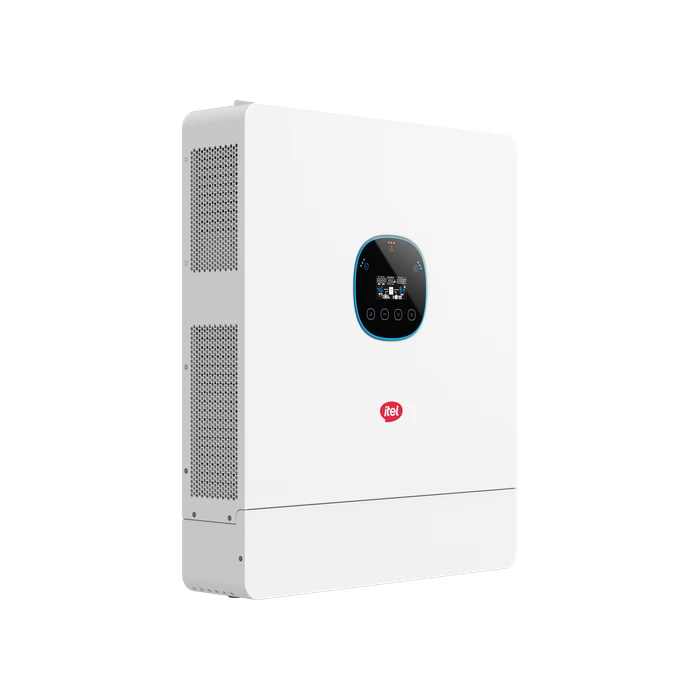

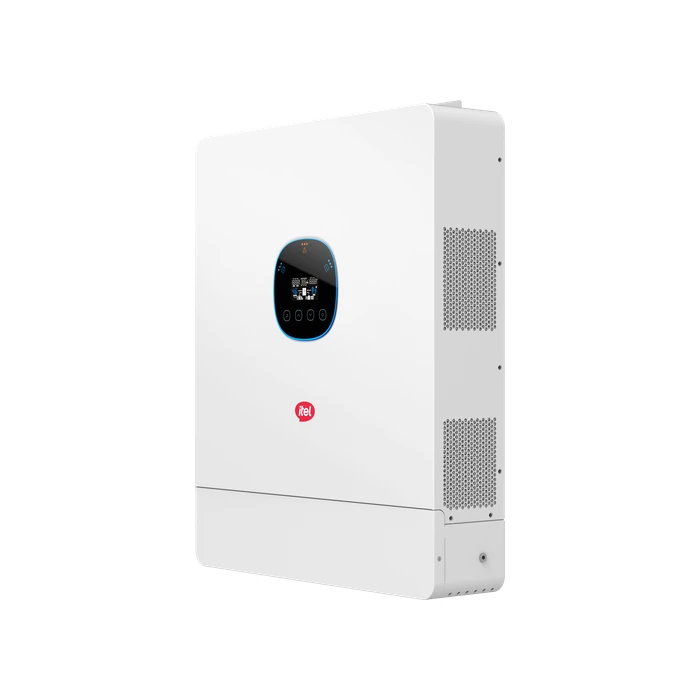

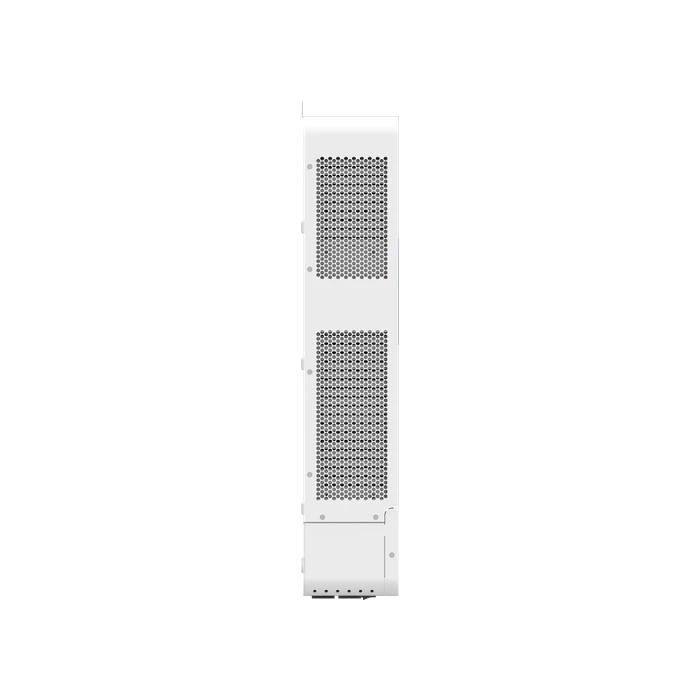

The Itel IPV-12K48U is a high-capacity 12kW single-phase hybrid solar inverter designed for large homes and small commercial energy systems. With IP54 protection, dual MPPT solar input, 48V battery compatibility, and powerful 24kW surge output, it delivers reliable backup power and intelligent energy management for heavy-load applications.
$299,900.00
Description
The Itel IPV-12K48U Hybrid Inverter is built for demanding solar energy systems requiring high output power, flexible battery integration, and dependable backup performance. Delivering 12kW / 12kVA continuous output power with up to 24kW surge capacity, it can handle high-startup loads such as multiple air conditioners, pumps, refrigerators, and other heavy appliances.
Designed with an IP54-rated enclosure, the inverter provides protection against dust and water splashes, making it suitable for utility rooms, warehouses, and semi-outdoor installations. It supports 48V battery systems with lead-acid, lithium-ion, and user-defined battery configurations, allowing flexible energy storage solutions.
The dual MPPT solar architecture supports efficient PV energy harvesting from multiple solar strings, while advanced protection systems and smart monitoring features provide stable, safe, and efficient operation.
Key Features
- 12kW / 12kVA continuous AC output power
- Up to 24kW surge power for 5 seconds
- IP54 dust and water-resistant protection
- 48V battery system support (40–60V range)
- Compatible with lithium-ion, lead-acid & custom batteries
- Dual MPPT solar input for optimized PV performance
- Up to 16,000W PV input capability
- Smart Load + Main Load dual output
- UPS fast switching (10ms UPS mode)
- Diesel generator compatibility
- WiFi / RS485 / CAN / RS232 communication
- Intelligent fan cooling system
- 3-year replacement support
Specification
Overview
| Product Type: Hybrid Solar Inverter | Hybrid Solar Inverter |
|---|---|
| Model | IPV-12K48U |
| Power Output | 12kW |
| Rated Apparent Power | 12kVA |
| Output Voltage | 220V, 230V, 240VAC |
| Frequenc | 50/60Hz |
| THD | <3% |
| Maximum PV Input Power | 16,000W |
| Maximum PV Voltage | 500V |
| MPPT Voltage Range | 85–450V |
| MPPT Efficiency | ≥99.5% |
| Battery Voltage | 48V |
| Battery Voltage Range | 40–60V |
| Battery Conversion Efficiency | Up to ≥95% |
| Input Voltage Range | 90–280VAC |
| Operating Frequency | 50/60Hz |
| Surge Power | 24kW for 5 seconds |
| Protection Rating | IP54 |
| Weight | 28.5kg |
| Maximum Altitude | 4000m |
